Extremely Cost-optimized Integrated Zonal Controller Solution

ZCU is an important component of the modern automotive electrical and electronic architecture (EEA), responsible for managing andcontrolling Extremely Cost-optimized Integrated Zonal Controller Solution electronic devices and systems within specific physical areas.

Scheme Block Diagram


Scheme Introduction

● The integrated ZCU solution based on C*Core's provide a solution with high security, high reliability, and high cost-optimization for CCFC3007BC aims to automotive electronic systems.

   Features of CCFC3007BC:

High Security and Reliability:Full-stack Security: MCU,MCAL, and functional safety libraries have achieved functional safety of ASlL-D; Comply with the EVITA-Full specification and supports international GM/T cypher algorithms.

Autonomous Core:PowerPC architecture,multi-core collaboration(3+1), with computing power reaching up to 2000 DMIPS.

High-bandwidth Communication Interfaces and Abundant Peripherals:12x CANFD, 16x LlN, 8x SPl, 1x Ethernet(TSN), 338x lO pin,2x ADC(total 84 channels),32x eMlO, and 96x eTPU.

Memory Resources:Embedded 8MB/6MB/4MB Flash、1.5MB of RAM. lt supports Hardware A/B SWAP , and OTA updates.

Application Examples

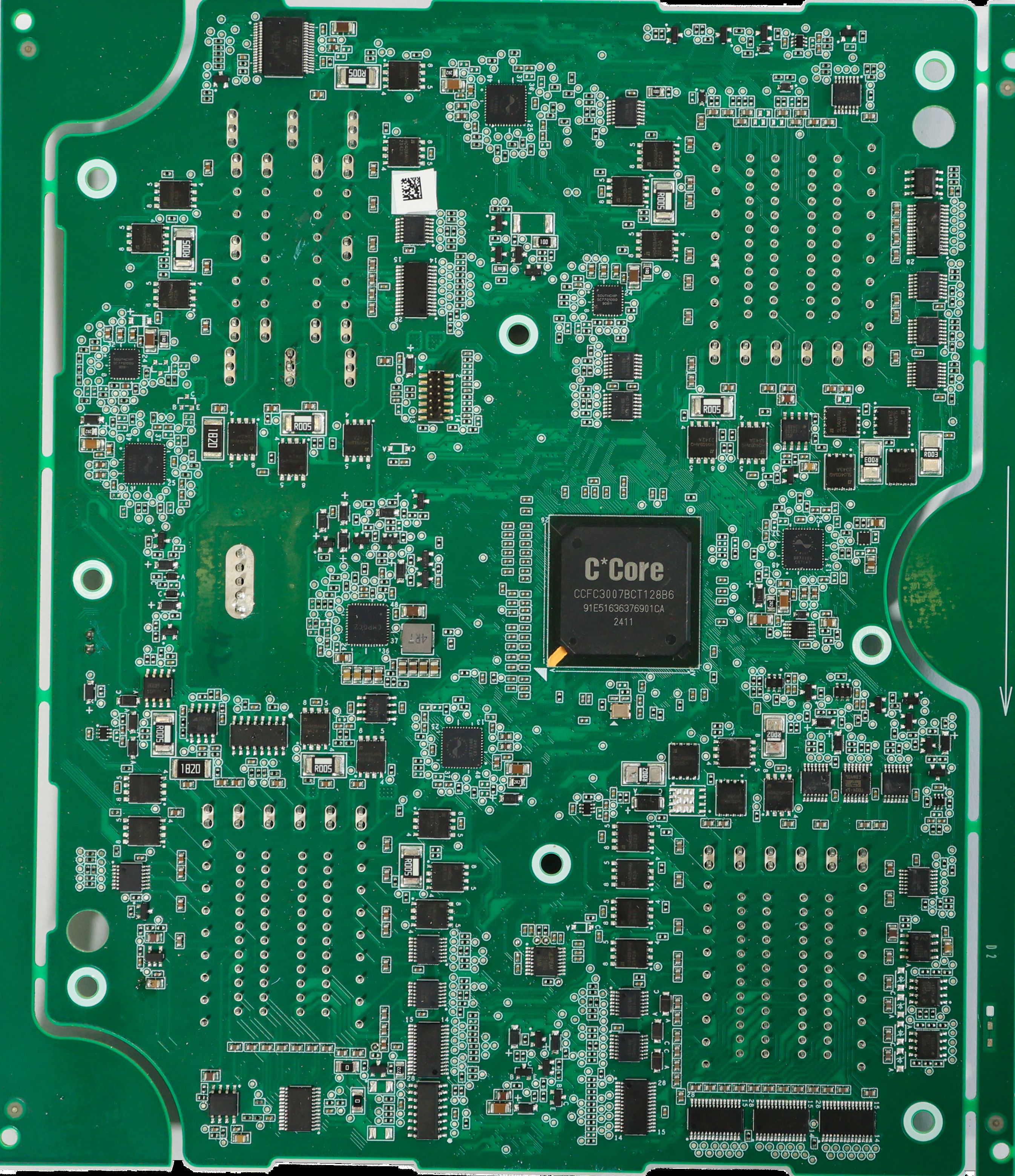

● ZCU Solutions based on CCFC3007BC

- The ZCU is responsible for power distribution within the region, integrating the function of gateway, EPB, radar, seats, air conditioning, and internal and external lighting control,achieving functional safety of ASIL-D. Supports FOTA.





● BDC solutions based on CCFC3007BC

- The BDC integrates BCM, Gateway, VCU, and other functions. The dual MCU solution doubles hardware resources, with up to 400 IO available resources, optimizes function allocation, balances the overall system load, and features master-slave mutual monitoring, achieving functional safety of ASIL-D. Supports FOTA.
