Fingerprint Security USB Flash Drive

Overview:

The fingerprint security USB flash drive is a contact-based fingerprint recognition device primarily composed of a C*Core’s processor chip, fingerprint sensor, and storage chip. It is distinguished by durability, corrosion resistance, strong anti-static capabilities, small size, low power consumption, and high security.

Fingerprint processing, matching, and storage are all completed within the C*Core’s processor chip,ensuring fast processing speed. Moreover, fingerprint data is encrypted to ensure secure storage.


Advantages

• Low power consumption

• Capacitive semiconductor sensor

• Short matching time

• The fingerprint security USB flash drive has three partitions: optical disk, general area, and secure area.

- The optical disk partition stores related tools and user manuals.

- The general area is a plaintext area with the same function as a regular USB.

-The secure area is an encrypted area that is initially closed. After registering a fingerprint and granting permissions, touching at any time will unlock the Secure Area. It supports encrypted storage of USB data, ensuring data security.

-Multiple incorrect password entries will automatically lock the device.

• Optional Features

-  Supporting Windows Hello function and is certified by the Windows Hardware Quality Labs (WHQL)

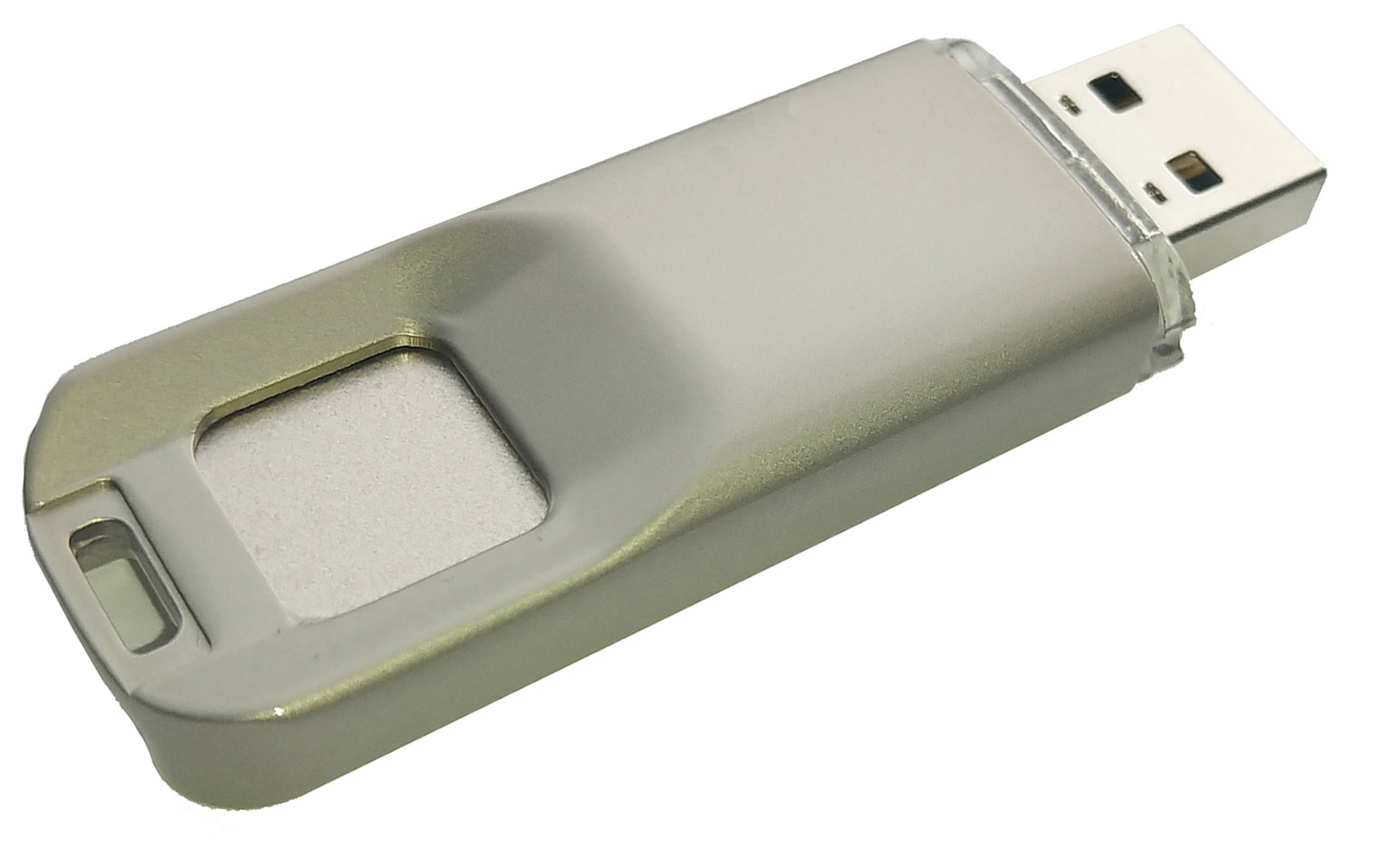

Appearance





Dimensions


Dimensions
Length65mm
Width20mm
Height10mm

Functional Characteristics

ParameterDescription
Processor (MCU)32bit C*Core MCU C*Core’s 32-bit CPU
Sensor TypeCapacitive Semiconductor Sensor
Resolution508DPI
Image Grayscale Level256 Levels
FAR0.002%
FRR<2%
Matching Time(1:10)<400ms
Fingerprint CapacityStandard configuration :10 Fingerprints
Operating Voltage4.5V~5.5V
Operating Current<120mA(max.)
Service LifeCoating Surface Hardness 4H, >1 Million Lifespan
Data InterfaceUSB2.0 (Compatible with USB1.1)
Storage Capacity16GB/32GB/64G/128G
Read/Write SpeedWrite::25MB/s(typ.),Read:27MB/s(typ.)
Operating EnvironmentTemperature:0℃~70℃
Storage EnvironmentTemperature:-40℃~85℃

Typical Application

The fingerprint security USB flash drive is primarily used by individuals or organizations who are sensitive of data security. Through the combination of fingerprint recognition and secure encrypted storage, it satisfies the legitimate use and secure storage of privacy data.

Technical Support

• Complete development environment

• Rich driver library

• Complete application solutions
